Time-Sert 1812CORE M8 x 1.25 Metric GM Rocker Arm Thread Repair Kit

$137.42

Description

The Time-Sert 1812CORE M8 x 1.25 Metric GM Rocker Arm thread repair kit includes tooling to be used in rocker arm thread repair where the threads must start a few millimeters below the ‘slot’. The Time-Sert 1812CORE drill included will allow a special 11.7mm metric length insert with no flange to be installed deeper than the standard Time-Sert 1812 thread repair kit.

The mechanic doing the repair will have to set the counterbore depth manually by hand. The five included Time Sert 18125117N inserts with a metric length of 11.7mm are held in place by the installation driver cold rolling the bottom of the insert, locking the insert in place.

If a repair has been made before and this is a second time repair, you must purchase the Big-Sert 1812CORE-BS thread repair kit.

Click Here For More Information

Click Here For Instructions

Click Here To Order Additional Inserts

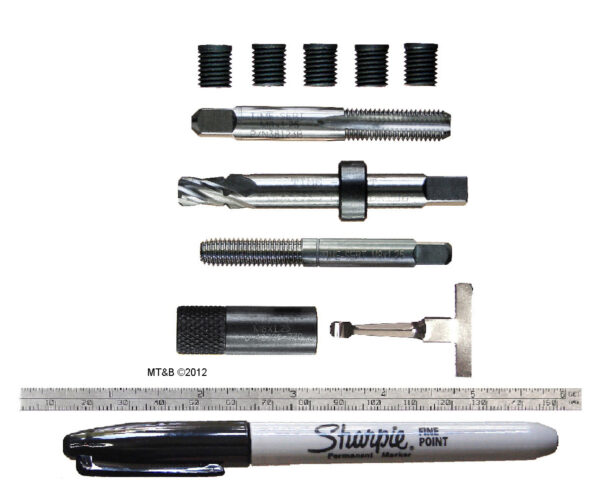

Time-Sert 1812CORE Thread Repair Kit Contains:

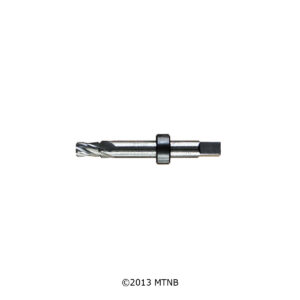

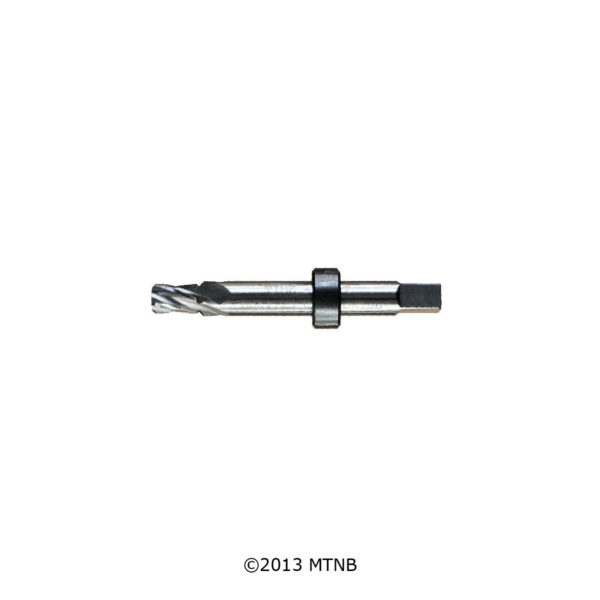

  • Step Core Drill w/ Collar

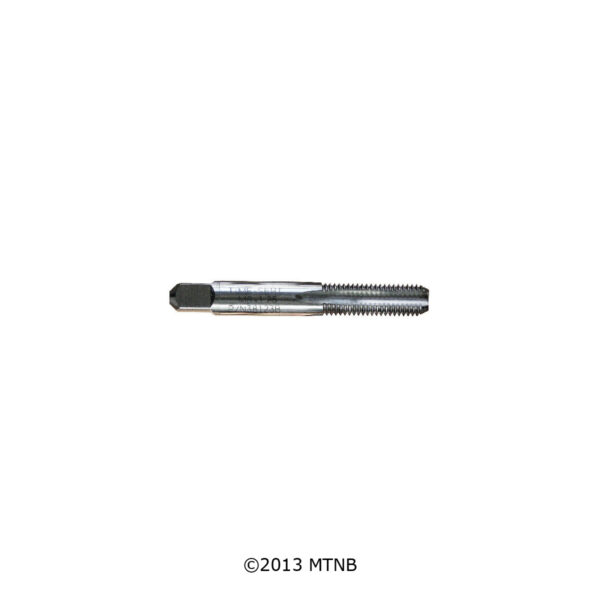

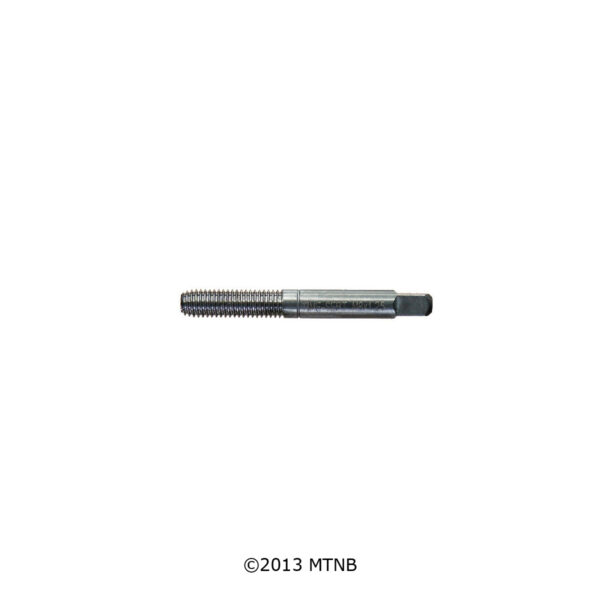

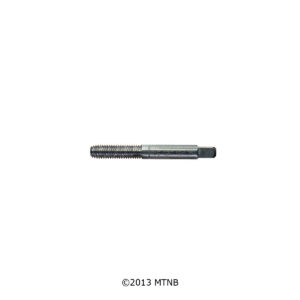

  • Tap

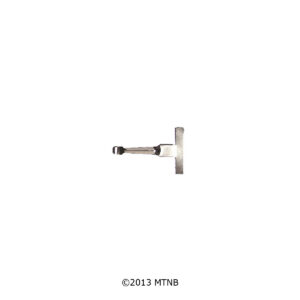

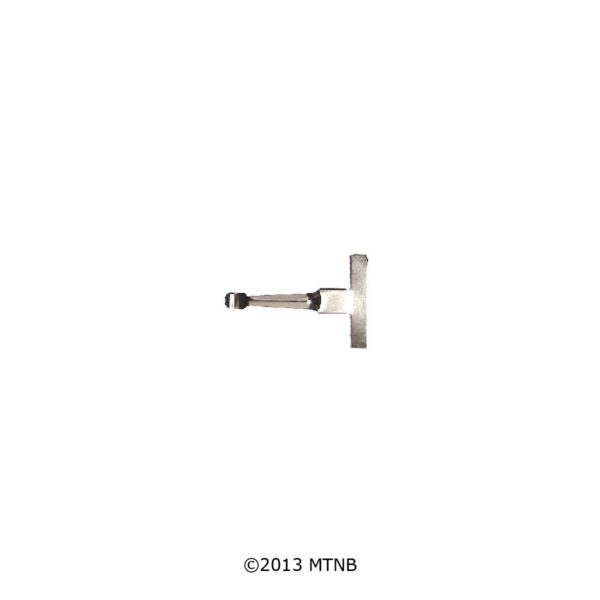

  • Insert Driver

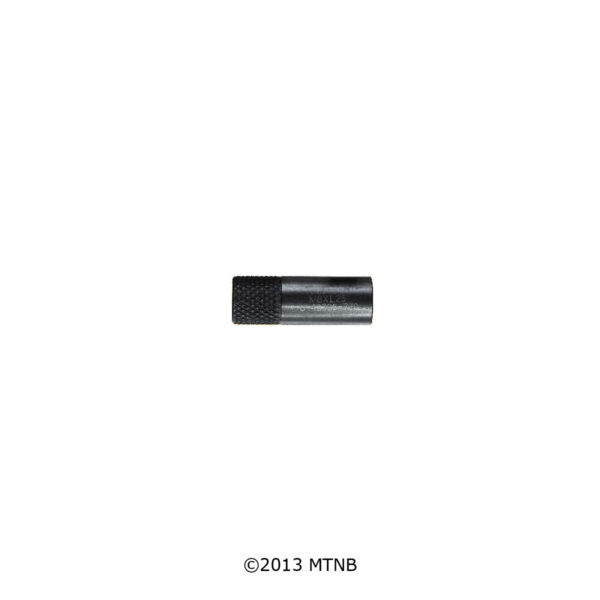

  • Tap Guide
  • Metal Ruler

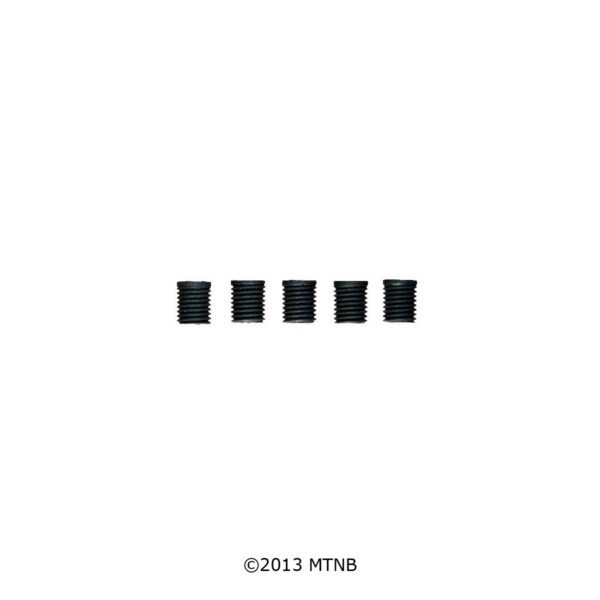

  • (5) Inserts with 11.7mm Metric Length No Flange – 18125117N

Additional information

Weight 1.2 lbs
Dimensions 6 × 3 × 2 in
